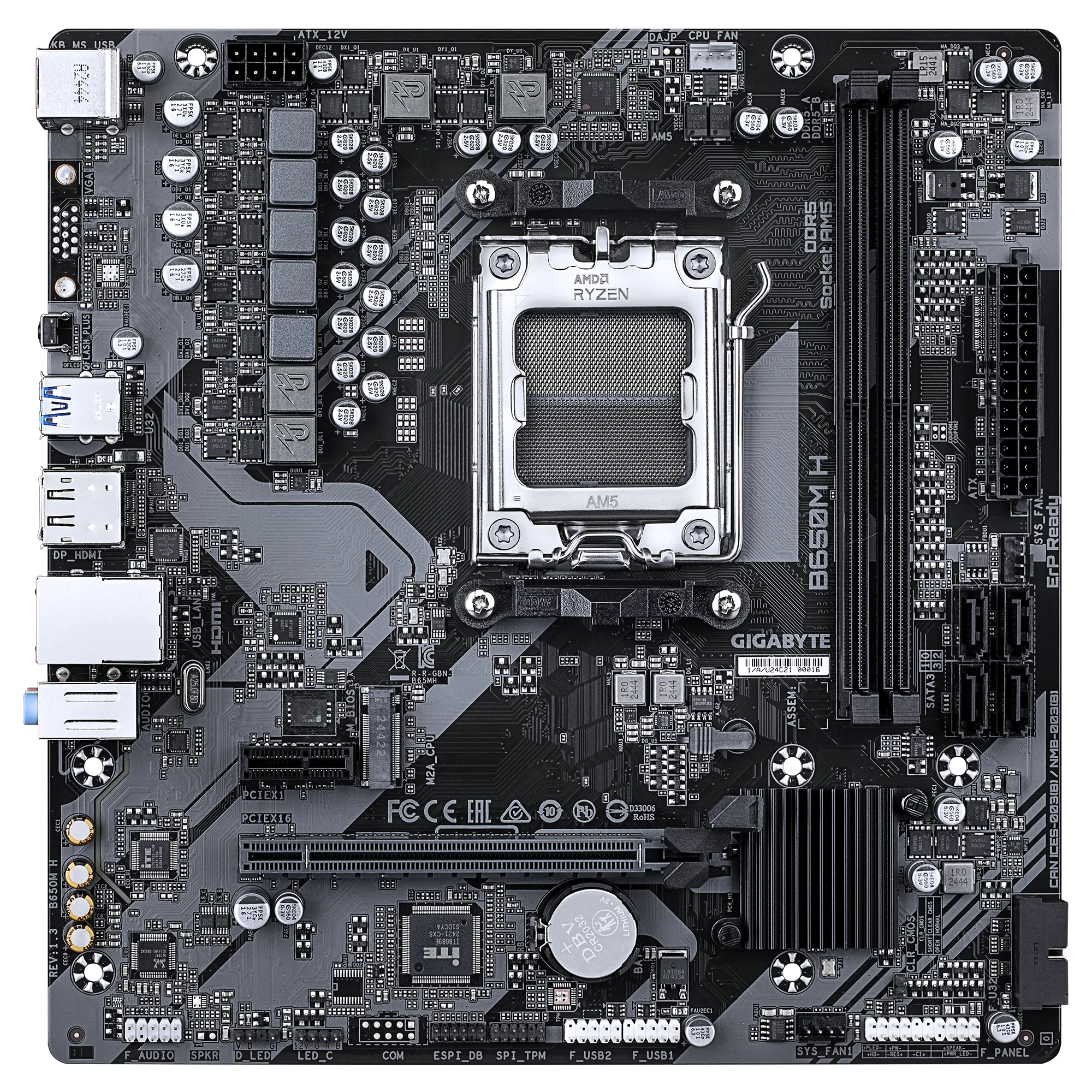

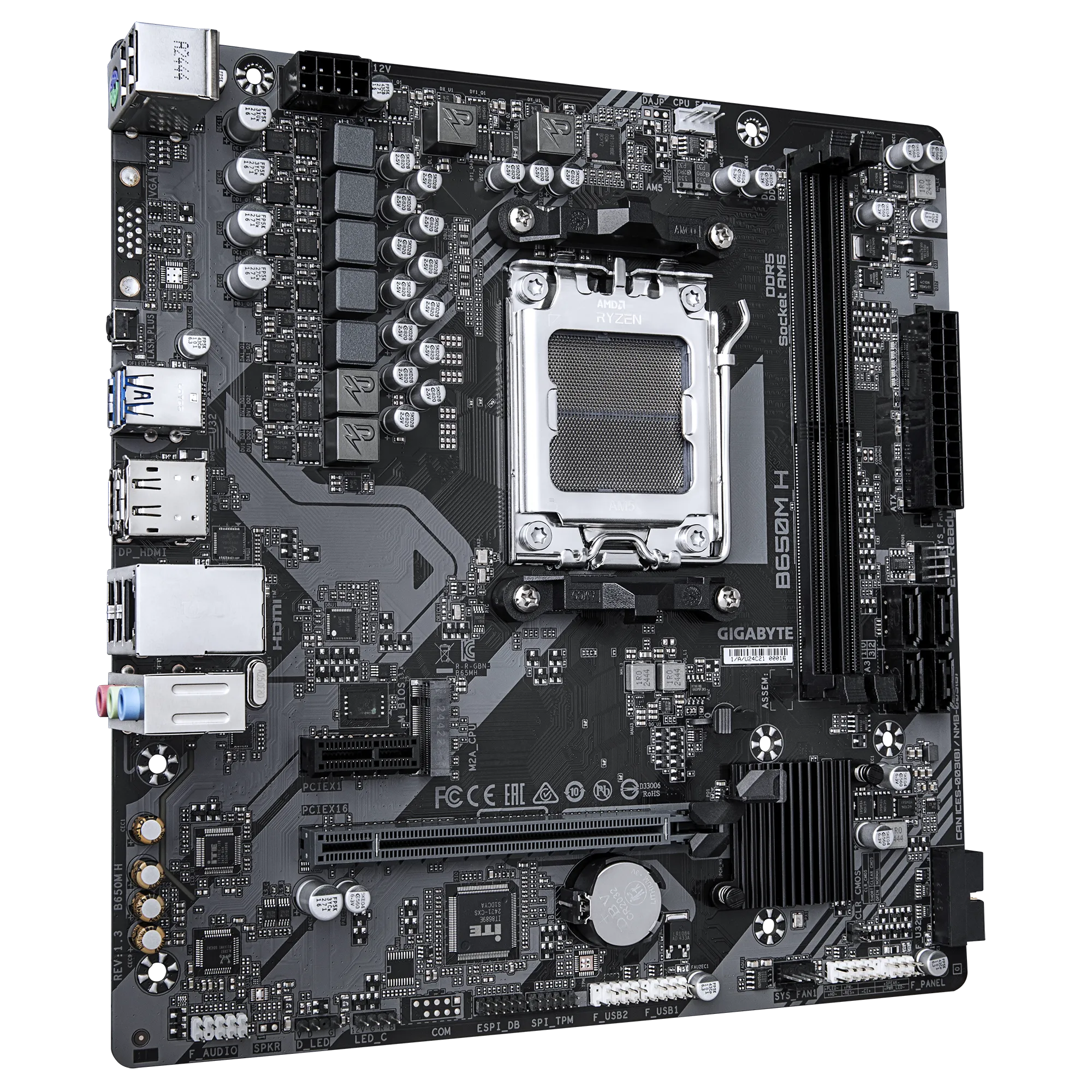

Placa Madre GIGABYTE B650M H – AM5, DDR5 7200+, PCIe 4.0, HDMI/DP, micro-ATX

Placa Madre GIGABYTE B650M H – AM5, DDR5 7200+, PCIe 4.0, HDMI/DP, micro-ATX

Cod: B650M H
GIGABYTE
Pago con transferencia$111.890
Otros medios de pago$117.485
Stock online
Stock en tienda

🔧 Especificaciones Técnicas

Procesador compatible

  • Socket AMD AM5

  • Soporta AMD Ryzen™ 7000 / 8000 / 9000 Series

Chipset

  • AMD B650

Memoria

  • 2 x DDR5 DIMM hasta 128 GB

  • Soporte para DDR5 7200 MHz (OC) hasta 4400 MHz

  • Dual Channel / AMD EXPO™ y XMP compatibles

Gráficos integrados

  • 1 x DisplayPort 1.4 (3840x2160 @144Hz)

  • 1 x HDMI 2.1 (4096x2160 @60Hz)

  • Soporte HDR y HDCP 2.3

  • Especificaciones gráficas pueden variar segĂşn CPU

Audio

  • Realtek® Audio CODEC / HD Audio / 2.0 a 7.1 canales

  • Configurable mediante software

Red

  • Realtek® GbE LAN (1 Gbps)

Slots de expansiĂłn

  • 1 x PCIe 4.0 x16 (desde CPU)

  • 1 x PCIe 3.0 x1 (desde chipset)

Almacenamiento

  • 1 x M.2 PCIe 4.0 x4/x2 (segĂşn CPU)

  • 4 x SATA 6Gb/s

  • Soporte RAID 0/1/10 para NVMe y SATA

Puertos USB

  • Panel trasero:

    • 2 x USB 3.2 Gen 1

    • 4 x USB 2.0

    • 1 x USB 2.0 adicional

  • Internos:

    • 2 x USB 3.2 Gen 1 (header)

    • 4 x USB 2.0 (headers)

Conectores internos

  • 1 x 24-pin ATX / 1 x 8-pin ATX 12V

  • 3 headers de ventiladores (CPU y sistema)

  • 1 x header ARGB + 1 x header RGB

  • Headers TPM, audio, USB, panel frontal

  • 1 x M.2 / 4 x SATA

  • 1 x Clear CMOS

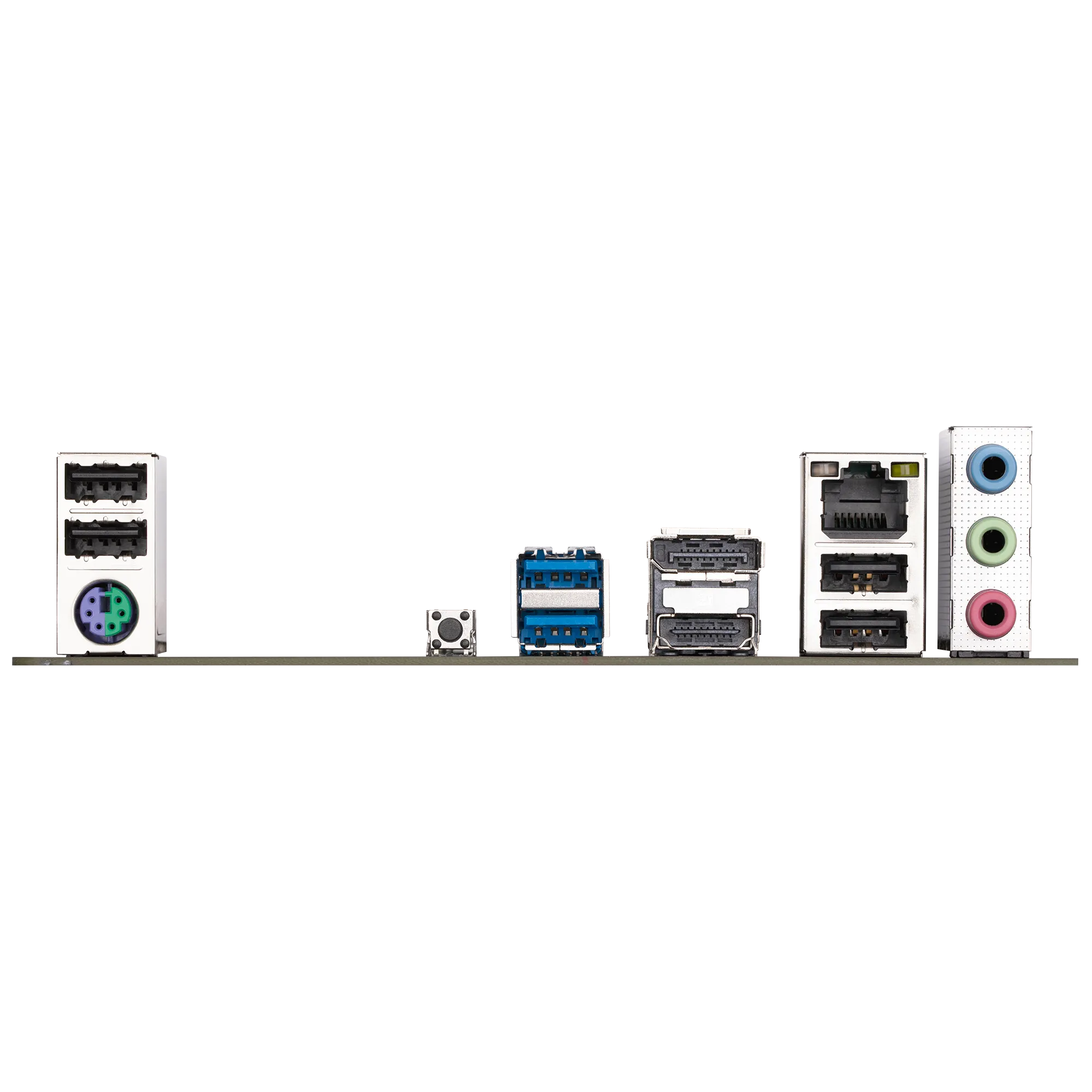

Panel trasero

  • 4 x USB 2.0

  • 2 x USB 3.2 Gen 1

  • 1 x HDMI / 1 x DisplayPort

  • 1 x PS/2

  • 1 x RJ-45

  • 3 x jacks de audio

  • BotĂłn Q-Flash Plus

Monitoreo y BIOS

  • Sensores de voltaje, temperatura, flujo, velocidad de ventilador

  • BIOS AMI UEFI 256 Mbit

  • Soporte Q-Flash y Q-Flash Plus

Software incluido

  • Norton® Internet Security OEM

  • LAN bandwidth management

  • GIGABYTE Control Center (GCC)

Sistema operativo compatible

  • Windows 10 y 11 64-bit

Formato

  • microATX (23.0 x 22.5 cm)
